Introduction

The relentless densification of telecommunications networks, driven by the global rollout of 5G and the anticipation of future generations, has created an urgent need for connector solutions that can simultaneously transmit power and data through a single, ruggedized interface. Hybrid connectors, which integrate electrical power contacts with optical fiber or high-frequency signal pathways within a unified connector body, have emerged as a pivotal enabling technology for modern telecommunications modules. These connectors address a fundamental challenge in network deployment: how to deliver both electrical power and high-bandwidth data to remote radio units, small cells, and other distributed network elements without multiplying the number of cable runs, connectors, and installation procedures.

The significance of hybrid connectors extends beyond mere convenience. In a typical 5G deployment, each remote radio unit or active antenna unit requires both DC power and optical data connectivity. Traditional approaches would route these through separate cables and separate connector interfaces, doubling the number of connectors, increasing tower loading, and multiplying the opportunities for installation errors or environmental failures. Hybrid connectors eliminate this redundancy by combining both functions into a single mating interface, reducing the number of components, simplifying installation, and improving overall system reliability.

 The Genesis of Hybrid Connector Technology

The conceptual foundation for hybrid connectors in telecommunications emerged from the recognition that optical signals and electrical signals could coexist within a single connector without mutual interference. A patent filing from the late 2000s explicitly articulated this advantage, noting that "the absence of interference between the optical signal and the electrical signal enables these two functions to be combined within a single connector," thereby allowing "a single cable instead of the two usually used, thereby achieving a non-negligible space saving".

Early hybrid connectors for telecommunications applications faced significant challenges related to manufacturing complexity and cost. The initial designs required a large number of precision components, making them economically unattractive for widespread deployment. Subsequent generations of hybrid connectors focused on design simplification, reducing component counts, and leveraging advanced manufacturing techniques to bring costs in line with the value proposition.

The evolution of hybrid connector technology has paralleled the evolution of telecommunications architecture itself. In traditional 4G deployments, baseband units (BBUs) were typically located at the base of the tower, connected to remote radio heads (RRHs) via fiber optic cables for data and separate copper cables for power. The advent of distributed RAN architectures and massive MIMO technology has pushed more processing capability to the radio unit itself, increasing power demands while also necessitating higher-bandwidth data connections. This architectural shift has made hybrid connectors not merely convenient but essential.

 Optical-Electrical Integration: Technical Architecture

The fundamental technical challenge of hybrid connector design lies in the integration of optical and electrical pathways within a shared physical envelope while maintaining the performance characteristics of both transmission media. Optical fibers require precise alignment to achieve low insertion loss, typically in the sub-decibel range, while electrical power contacts must provide low-resistance paths for currents that may reach 55 A or more.

The optical portion of a hybrid connector typically employs industry-standard fiber optic termini, such as LC, SC, or MPO connectors, which can be arranged in multi-fiber configurations. The Senko IP-25 SN Hybrid connector, for example, features four pairs of SN duplex connectors accommodating eight fibers for data transmission, combined with eight 16-18 AWG copper conductors for power delivery. This connector is rated to IP68 for dust and water ingress protection and can be deployed with Class 4 Fault Managed Power Systems (FMPS), which enable safe and reliable high-power delivery over extended distances.

The electrical portion of hybrid connectors must satisfy the same demanding requirements as dedicated power connectors, including high current-carrying capacity, low contact resistance, and robust environmental sealing. The integration of power and optical pathways within a shared housing introduces additional considerations, particularly regarding thermal management. The heat generated by electrical resistance in power contacts must be dissipated without raising the temperature of optical fiber termini beyond their operating limits, which could cause increased attenuation or damage to the fiber coating.

Electromagnetic compatibility is another critical design consideration. The high currents flowing through power conductors generate magnetic fields that could potentially interfere with sensitive optical receivers or high-frequency signal paths. Conversely, external electromagnetic fields could induce noise currents in power circuits that might couple into signal pathways. Hybrid connectors address these concerns through careful physical separation of power and signal paths, electromagnetic shielding of sensitive components, and grounding strategies that provide controlled return paths for induced currents.

 Hybrid Connector Architectures and Configurations

The diversity of telecommunications applications has produced a corresponding diversity of hybrid connector architectures, each optimized for specific deployment scenarios and performance requirements. Understanding these configurations is essential for selecting appropriate connectors for particular applications.

 Fiber-to-the-Antenna (FTTA) Hybrid Connectors

FTTA applications represent the most widespread use case for hybrid connectors in telecommunications. In a typical FTTA deployment, a hybrid trunk cable runs from the baseband processing equipment at the tower base to a junction box or distribution point near the top of the tower. From there, hybrid jumper cables connect to individual remote radio units, each requiring both power and optical data connectivity.

The Prysmian FTTA Hybrid junction box exemplifies the system-level integration enabled by hybrid connector technology. This aerial enclosure accepts a single incoming pre-terminated hybrid cable and redistributes to up to four hybrid RRH jumper cables, preconfigured according to customer specifications for fiber-only, power-only, or hybrid external connections. This architecture dramatically simplifies tower installation by reducing the number of cable runs and connector mating operations required.

The Souriau FTTA hybrid solution, developed through close engineer-to-engineer collaboration with customers, combines electrical and fiber optic contacts within the same connector to simplify installation and maintenance compared to previous configurations that required two parallel connector systems. The connectors are resistant to extreme weather conditions including shock, UV radiation, corrosion, and water ingress, with IP68/69K ratings suitable for the most demanding outdoor environments.

 RF-Power Hybrid Connectors

While FTTA hybrid connectors combine optical data and DC power, RF-power hybrid connectors integrate radio frequency signal paths with electrical power transmission. These connectors are particularly valuable in 5G base stations and satellite communication devices where RF signals must be routed to antenna elements while DC power is simultaneously delivered to amplifiers and control circuits.

The design of RF-power hybrid connectors requires careful attention to impedance matching and signal integrity for the RF pathways while maintaining low-resistance power connections. Shielded compartments and isolation techniques separate the RF and power circuits, with special dielectric materials selected to minimize crosstalk between signal and power pathways. The Amphenol SV Microwave VITA 66.5 hybrid modules represent the state of the art in this category, combining 14 or 19 port RF interfaces with a 3-port MT fiber backplane in a single module supporting frequencies up to 100 GHz.

 Multi-Port Hybrid Connectors for High-Density Deployments

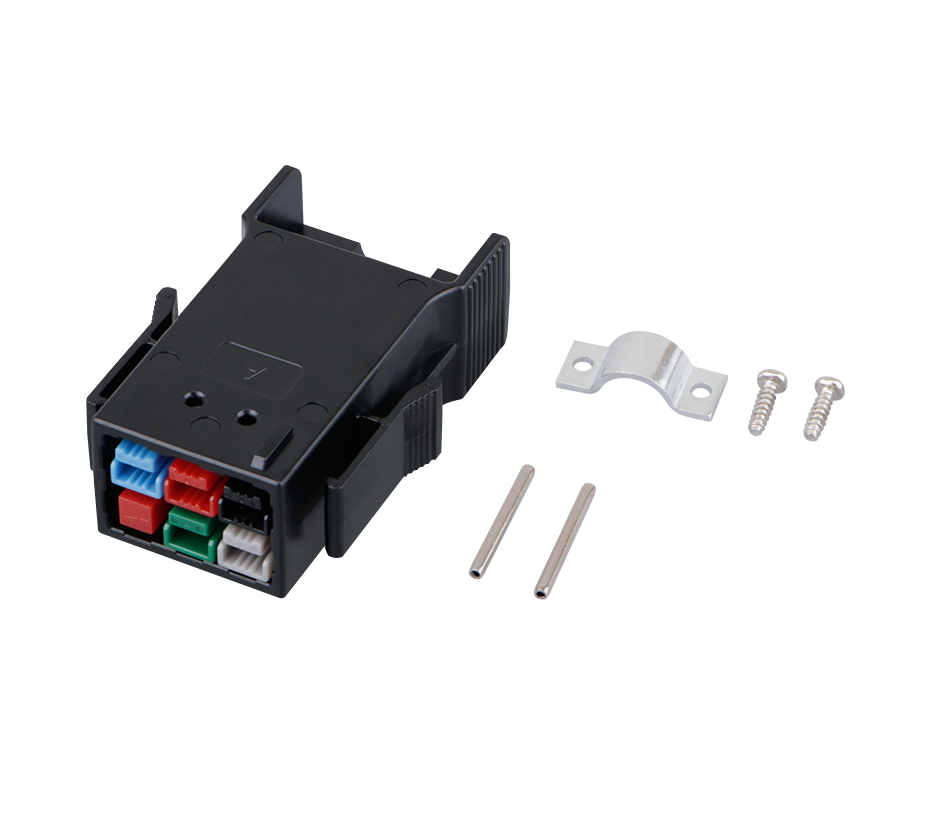

As network densification accelerates, the number of connections required at each cell site continues to grow. Multi-port hybrid connectors address this challenge by integrating multiple power and data channels within a single connector body. The Senko IP-25 SN Hybrid connector, with its eight optical fibers and eight power conductors, exemplifies this high-density approach. The connector's bayonet locking mechanism with patented Safe Lock Ring ensures secure mating while providing visual confirmation of proper engagement, a feature that is particularly valuable when connections must be made in visually obstructed or difficult-to-access locations.

The color-coding of safe lock rings serves a critical safety function in multi-port hybrid connectors. Connectors intended for Class 4 FMPS applications feature orange colored safe lock rings, while Class 1-2 connectors use standard red rings. The mechanical keying prevents cross-mating between connectors rated for different power classes, providing an additional layer of safety beyond visual identification alone.

 Performance Requirements and Testing Standards

Hybrid connectors for telecommunications modules must satisfy a comprehensive set of performance requirements that span optical, electrical, mechanical, and environmental domains. These requirements are codified in international standards and verified through rigorous testing protocols.

 Optical Performance

The optical performance of hybrid connectors is characterized by insertion loss, return loss, and mating durability. Insertion loss, the reduction in optical power caused by the connector interface, must be minimized to preserve signal strength over the link budget. The Senko IP-25 SN Hybrid connector achieves typical insertion losses of 0.08 dB for single-mode UPC, 0.12 dB for single-mode APC, and 0.10 dB for multimode fibers. These values represent the state of the art in hybrid connector optical performance and are comparable to those achieved by dedicated optical connectors.

Return loss, which measures the amount of optical power reflected back toward the source, is equally important for high-speed optical transmission systems. Excessive return loss can cause laser instability and increased bit error rates. Hybrid connectors employ precision ferrules and alignment mechanisms to maintain low return loss across repeated mating cycles and environmental variations.

 Electrical Performance

The electrical performance requirements for hybrid connectors mirror those of dedicated power connectors, with current-carrying capacity, contact resistance, and voltage drop being the primary parameters. The eight 16-18 AWG conductors in the Senko IP-25 SN Hybrid connector are rated for Class 1 and 2 powering, providing sufficient capacity for most remote radio unit and small cell applications. For higher-power applications, the Class 4 FMPS configuration with the same conductor count supports higher voltage operation, enabling greater power delivery over longer distances.

Contact resistance in hybrid connectors is minimized through the use of copper alloy contacts with appropriate platings. Gold plating is preferred for signal contacts where stable, low-resistance connections are essential over many mating cycles, while silver or tin platings may be used for power contacts where cost considerations are more prominent. The contact design must ensure adequate normal force to maintain reliable electrical connection despite vibration, thermal cycling, and mechanical wear.

 Environmental Performance

The environmental performance of hybrid connectors is perhaps their most critical attribute for outdoor telecommunications applications. The connectors must withstand the full range of environmental stresses encountered in tower-top installations, including temperature extremes, moisture, UV radiation, wind-driven rain, and airborne contaminants.

IP68 rating represents the highest level of ingress protection commonly specified for telecommunications hybrid connectors. This rating indicates that the connector can withstand continuous immersion in water under specified pressure conditions without allowing water ingress that would impair operation. Achieving IP68 protection requires robust sealing at all interfaces, including the connector-to-cable junction, the mating interface between plug and receptacle, and any panel-mounting interfaces.

Temperature performance is specified across the full range of expected operating conditions. The Senko IP-25 Hybrid SN connector is rated for operation in the environmental conditions typical of outdoor FTTA deployments, with UV resistance specified for long-term exposure to sunlight. The connector housing material and sealing elements must maintain their properties across the temperature range without becoming brittle at low temperatures or softening at high temperatures.

 Mechanical Performance

Mechanical performance requirements for hybrid connectors encompass mating durability, pull strength, and vibration resistance. Mating durability, specified as the number of complete mating cycles the connector can withstand while maintaining performance within specification, is typically 50 cycles for outdoor hybrid connectors. While this may seem low compared to indoor connectors that may be rated for thousands of cycles, it reflects the reality that outdoor connectors are typically mated only during initial installation and occasional maintenance events.

Pull strength is a critical safety parameter for tower-mounted connectors. A connector that separates under tension could cause power loss to critical equipment or, worse, create a hazardous condition if live conductors are exposed. The Senko IP-25 Hybrid SN connector is rated for 100 pounds (450 N) of pull force, providing substantial margin against the mechanical loads imposed by cable weight and wind loading. The crimp ring attachment between the cable and connector housing is a critical element in achieving this pull strength, requiring proper installation procedures and quality control during cable assembly.

 Hybrid Connector Applications in 5G Networks

The applications of hybrid connectors in 5G networks span the full range of network elements, from macro cell towers to small cell poles to indoor distributed antenna systems. Each application presents unique requirements and constraints that influence connector selection and system design.

 Macro Cell Tower Deployments

Macro cell towers represent the most demanding application environment for hybrid connectors. Connectors installed at the top of towers must withstand the full force of weather exposure, including temperature extremes, high winds, and direct sunlight. Access for maintenance is difficult and expensive, placing a premium on reliability and long service life.

In a typical macro cell deployment, a hybrid trunk cable runs from the baseband unit at the tower base to a junction box near the top of the tower. The junction box distributes power and optical signals to individual remote radio units via hybrid jumper cables. Each jumper cable terminates in a hybrid connector that mates with the RRU's power and optical interface. The Molex Fiber-to-the-Tower Hybrid Cables system exemplifies this architecture, using a single-run solution that merges copper power connections with optical fibers to streamline tower deployments and reduce installation time.

The reduction in cable count achieved by hybrid connectors has multiple benefits for tower deployments. Fewer cables mean less weight on the tower structure, reducing structural loading and potentially allowing more equipment to be installed. Fewer connectors mean fewer potential failure points and reduced installation labor. The simplified cable routing also reduces the risk of installation errors and makes maintenance easier.

 Small Cell and Street Furniture Deployments

Small cells deployed on street furniture such as lampposts and utility poles present different challenges for hybrid connectors. These installations are often in publicly accessible locations where equipment must be protected from vandalism and accidental damage. The connectors must be compact enough to fit within aesthetic enclosures while still providing reliable power and data connectivity.

The OCTIS Outdoor I/O Ruggedized Interconnect system from Radiall was specifically designed to address the interconnect challenges associated with small cell and next-generation RRU/RRH deployments. The system supports broadband Ethernet and outdoor microwave network units, with hybrid configurations combining power and signal transmission in a single connector. The connectors feature lightning protection, EMI shielding, UV resistance, and IP67 weather resistance, providing comprehensive protection against environmental and electrical hazards.

 Indoor Distributed Antenna Systems

While outdoor applications dominate discussions of hybrid connector requirements, indoor distributed antenna systems (DAS) also benefit from hybrid connector technology. Indoor DAS installations in stadiums, airports, and large commercial buildings require numerous remote antenna units, each needing power and data connectivity. Hybrid connectors reduce the cable count and installation complexity in these deployments, where cable routing space is often constrained and installation labor costs are significant.

Indoor hybrid connectors may have somewhat relaxed environmental requirements compared to outdoor versions, but they must still provide reliable performance over the system's service life. Fire safety requirements may dictate the use of plenum-rated materials and low-smoke zero-halogen (LSZH) cable jackets for indoor installations.

 Market Dynamics and Industry Trends

The market for hybrid connectors in telecommunications applications is experiencing robust growth driven by the global rollout of 5G networks and the increasing deployment density required to deliver expected data rates and coverage. Market analysis indicates a compound annual growth rate of approximately 9.12% for the global hybrid connector market, with the market projected to grow from approximately $2.67 billion in 2024 to $4.89 billion by 2032.

The growth in hybrid connector demand is closely tied to the broader 5G connector market, which is itself experiencing accelerated growth due to network densification and industrial IoT expansion. The global 5G connector market is estimated to grow at a compound annual growth rate of approximately 7.5% over the period from 2026 to 2035, driven by factors including 5G standalone network rollouts, automotive C-V2X mandates, and industrial IoT adoption.

Several key trends are shaping the evolution of hybrid connector technology and the market for these products. The transition from 4G to 5G architectures is driving increased demand for hybrid connectors as network operators seek to reduce installation costs and simplify tower deployments. The densification of networks through small cell and distributed antenna system deployments is creating new applications for hybrid connectors in compact, aesthetically constrained installations. And the development of higher-power 5G equipment is pushing hybrid connector current ratings higher, requiring innovations in contact design and thermal management.

 Design Challenges and Engineering Solutions

The design of hybrid connectors for telecommunications modules presents a unique set of engineering challenges that require integrated solutions spanning multiple technical disciplines. Understanding these challenges and the approaches used to address them provides insight into the sophistication of modern hybrid connector technology.

 Thermal Management in Hybrid Connectors

The coexistence of high-current power contacts and temperature-sensitive optical components within a shared connector housing creates a challenging thermal environment. Power contacts carrying tens of amperes generate heat through resistive losses, and this heat must be dissipated without raising the temperature of optical fiber termini beyond acceptable limits. The problem is compounded in outdoor installations where solar loading can raise connector surface temperatures well above ambient.

Design solutions for thermal management in hybrid connectors include the use of thermally conductive housing materials that spread heat away from sensitive components, strategic placement of power contacts to maximize heat dissipation to the external environment, and the use of thermal interface materials between internal components. Some advanced designs incorporate heat spreaders or thermally conductive pathways that channel heat from power contacts toward the connector exterior.

 Electromagnetic Compatibility

The integration of power and signal pathways within a single connector creates potential for electromagnetic interference that must be carefully managed. The high currents in power conductors generate magnetic fields that can couple into nearby signal conductors, while the rapid voltage transitions in digital signal paths can capacitively couple noise into power circuits.

Hybrid connector designs address electromagnetic compatibility through a combination of physical separation, shielding, and grounding. Power and signal contacts are arranged with maximum practical separation within the connector body. Metallic shields or conductive coatings may be interposed between power and signal sections. Grounding strategies ensure that induced currents have controlled return paths that do not couple into sensitive circuits.

 Reliability and Quality Assurance

The reliability requirements for hybrid connectors in telecommunications applications are among the most demanding of any connector application. Field replacement of failed connectors is expensive and disruptive, particularly for tower-mounted equipment. The connectors must provide reliable service for the life of the equipment, often ten years or more, without degradation of optical or electrical performance.

Reliability is achieved through rigorous design practices including the use of proven contact geometries, conservative current and temperature ratings, and redundant sealing systems. Quality assurance during manufacturing includes comprehensive testing of optical insertion loss and return loss, electrical continuity and contact resistance, environmental sealing, and mechanical integrity. Field installation procedures must ensure that connectors are properly mated and sealed, with visual inspection and, in some cases, performance testing before equipment is placed in service.

 Future Directions

The future evolution of hybrid connectors for telecommunications modules will be shaped by the continued advancement of network technology and the increasing demands placed on connector performance. Several emerging trends are likely to influence hybrid connector design in the coming years.

Higher levels of integration are expected as hybrid connectors evolve to combine additional functions beyond power and data transmission. Future connectors may incorporate monitoring capabilities that report connector health, temperature, and mating status to network management systems. Integrated identification features could enable automatic configuration of connected equipment, simplifying installation and reducing the risk of mismatches.

The development of higher-power 5G and future 6G equipment will drive demand for hybrid connectors with increased current-carrying capacity. This will require innovations in contact design, materials, and thermal management to accommodate higher currents without increasing connector size—a challenging requirement given the simultaneous pressure for compact form factors.

Advances in optical fiber technology, including the development of multi-core fibers and higher-density fiber arrays, will influence hybrid connector design by increasing the number of optical channels that must be accommodated within a given connector footprint. The mechanical alignment and retention systems for these high-density optical interfaces will require continued refinement to maintain low insertion loss and high reliability.

Hybrid connectors for telecommunications modules represent a sophisticated engineering response to the converging demands of 5G network deployment: the need for higher power delivery, greater data bandwidth, simplified installation, and reduced cost. By integrating electrical power and optical data transmission within a single connector interface, these components enable the compact, efficient, and reliable network infrastructure that modern telecommunications requires.

The technical challenges involved in hybrid connector design—thermal management, electromagnetic compatibility, environmental sealing, and mechanical reliability—are substantial, but they have been successfully addressed through decades of connector engineering experience combined with targeted innovation in materials, design, and manufacturing processes. The resulting products meet demanding performance specifications while providing the installation simplicity and field reliability that network operators depend upon.

As 5G networks continue to evolve and future generations of wireless technology emerge, hybrid connectors will remain a critical enabling technology for telecommunications infrastructure. The continued advancement of connector performance, coupled with the growth of the hybrid connector market, ensures that these components will play an increasingly important role in connecting the world's communications networks.
